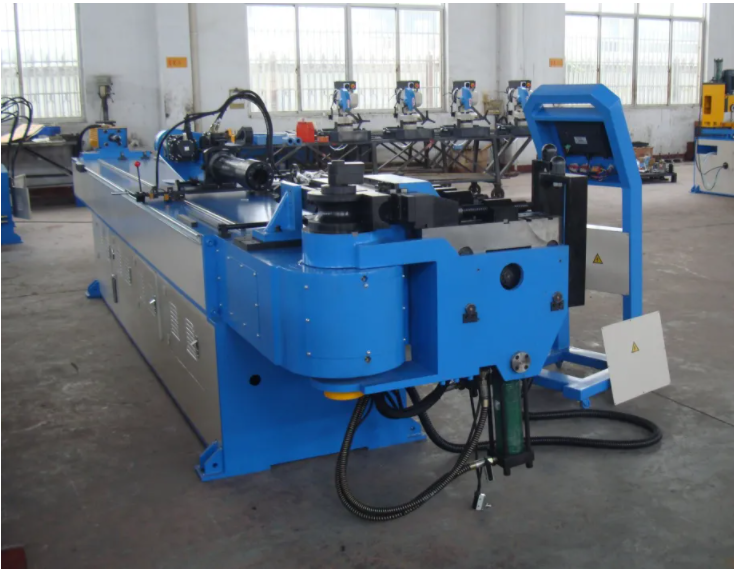

Macchina piegatubi automatica monotesta con certificato Ce (GM-SB-76CNC)

Macchina piegatubi automatica monotesta con certificato Ce (GM-SB-76CNC) offerta dal produttore cinese GMACC. Acquista direttamente una piegatrice automatica monotesta con certificato CE (GM-SB-76CNC) a basso prezzo e alta qualità.

Stato di disponibilità:

Quantità:



Richiesta Aggiungere al carrello

Modello:
GM-SB-76CNC
marchio prodotto:
GMACC

Descrizione del prodotto

Descrizione del prodotto

GM-SB-76CNC piega automaticamente nella stessa macchina adatta per il pezzo in lavorazione automatico continuo completo di direzione diversa, un numero di angoli diversi di pezzi tridimensionali, utilizzando gli operatori della macchina touch-screen e le procedure di controllo del computer industriale, è un automatico efficiente ed economico piegatubi.

1. Corpo macchina da costruzione mediante saldatura, assemblaggio di parti meccaniche, sistema idraulico di importazione, controllo elettronico delle importazioni di tessuto da completare.
2. Prestazioni principali Utilizzando il touch screen industriale, il menu in modalità inglese è semplice, con alta precisione, veloce, multifunzionale e alto grado di automazione. Ogni azione della macchina è controllata dal sistema di controllo del programma PLC.

3. I parametri tecnici
Nome Unità GM-SB-76CNC
Max. Capacità di piegatura mm 76 * 4
Regione raggio di curvatura mm 30-350
Regione angolo di piegatura ° 0-190
Max. Distanza effettiva passante mm 2500
Precisione di piegatura ° ± 0.10
Velocità di piegatura ° / sec 30
Precisione di alimentazione mm ± 0.10
Velocità di avanzamento mm / sec 800
Girare la precisione del tubo ° ± 0,10
Velocità rotazione tubo ° / sec 160
Potenza motore del sistema pompa olio KW 7.5
Max. Pressione Kgh / cm \ 2 16
Lunghezza generale * Larghezza * Altezza mm 5000 * 1200 * 1350
Peso generale T 3.5
